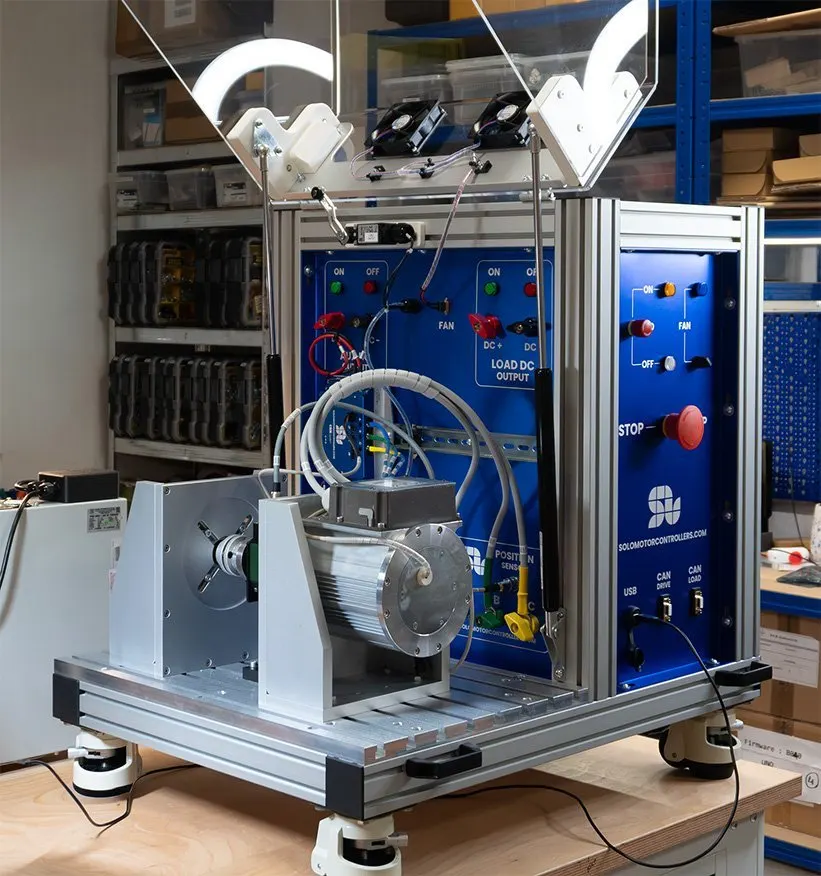

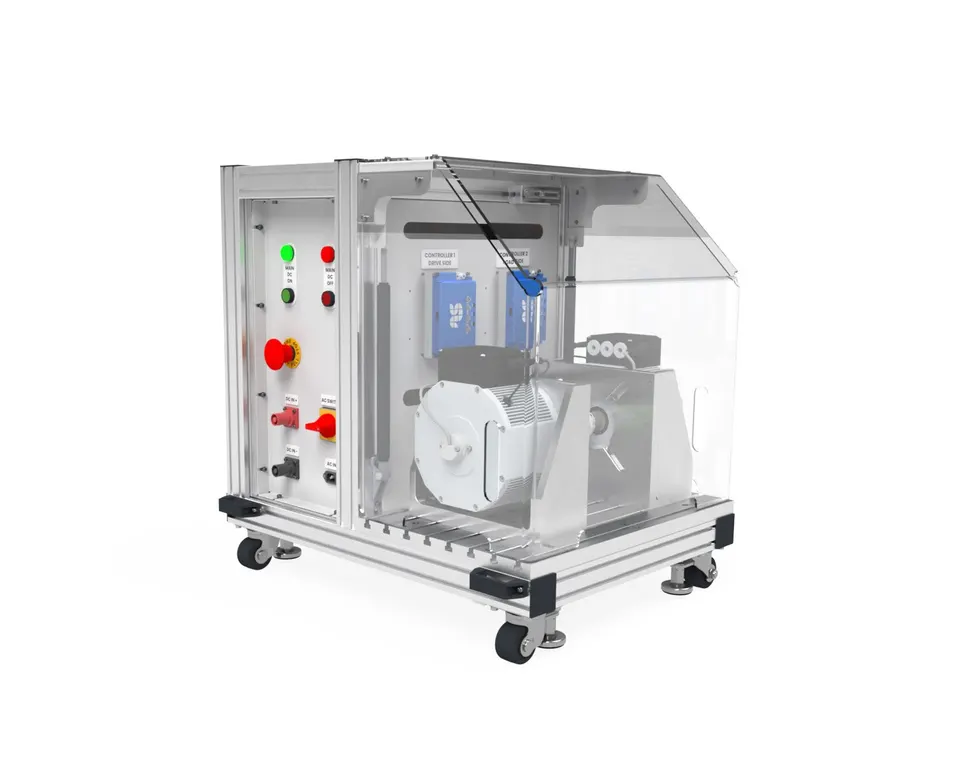

Motor Test Bench
Portable and Versatile
Part Number: TB01752006900
Price 38,778.00€
A Safe Tool that You Need

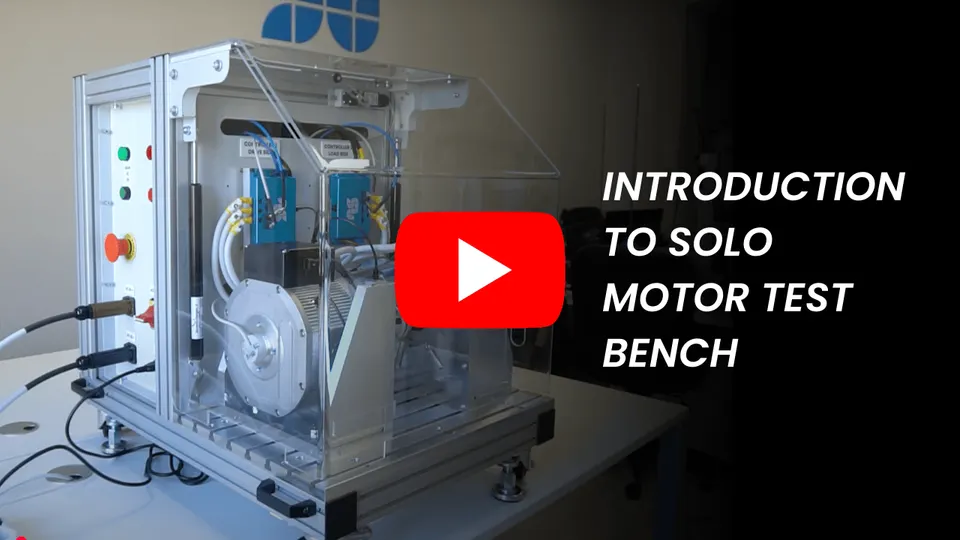

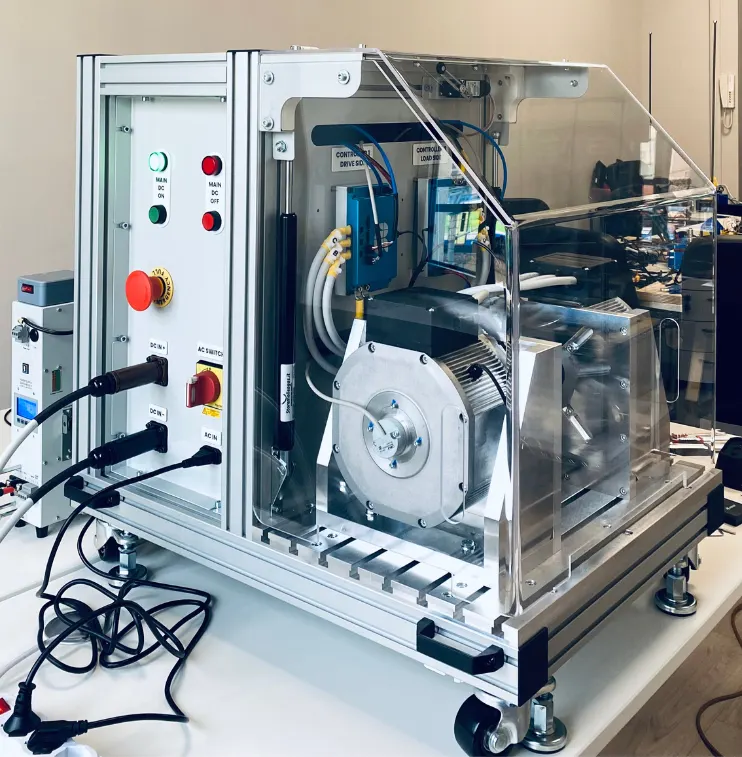

This Portable Electric Motor Test Bench offers precise testing with high-end motor controllers and supports CANopen and EtherCAT for Advanced Diagnostics. Designed with Multi-Layered Safety, it ensures secure operation during all tests.
Ideal for Companies and Universities, it supports Motor Development, Prototyping, and Education. Its portability, advanced features, and focus on safety make it perfect for Lab use and Field use.
Software
Streamlined Testing, Powerful Results

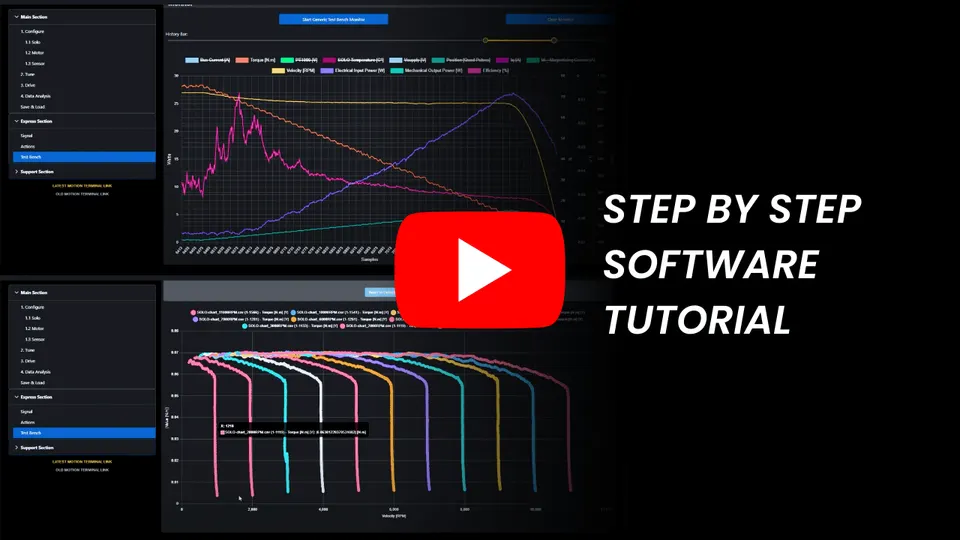

The SOLO Test Bench software delivers a user-friendly interface for real-time motor testing control, monitoring, and data logging. With the integrated SOLO Motion Terminal, users can easily configure drive and load units, view live performance metrics, and export test data for advanced report and datasheets.
Applications
Research & development
Ideal for testing new Motors, Motor Controllers, or other types of Power Electronic designs and prototypes.
Quality Assurance
Ensures Motor and Drive performance meets industry standards.
Engineers, researchers & Technicians
Perfect for motor testing across various fields.
Education
A hands-on tool for teaching motor and control principles and testing methods.
Technical Features
Versatile Motor Compatibility
Suitable for testing various types of electric motors especially BLDC, PMSM, and AC induction motors up to 75kW and customisable Torque and Speed sensors.

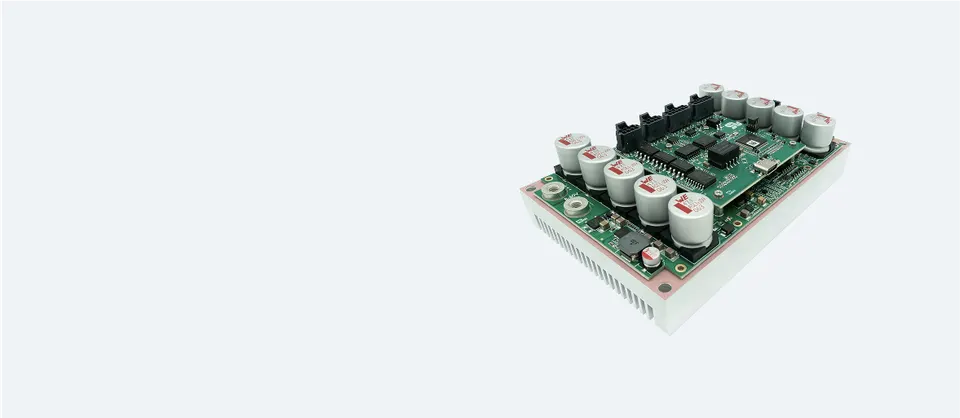

High-End Motor Controllers
Equipped with advanced and user-selectable.
Accurate Performance Diagnostics
Delivers reliable data for efficiency, load, and dynamic testing.
Industrial Communication Protocols
Supports various protocols like CANopen, EtherCAT, and Ethernet, as well as a Profinet for seamless integration and data exchange in industrial setups.
User-Friendly Interface
Simplifies setup and testing for professionals and educators alike using SOLO software and tools.
Multi-Layered Safety
Designed with multiple safety layers to ensure secure operation.

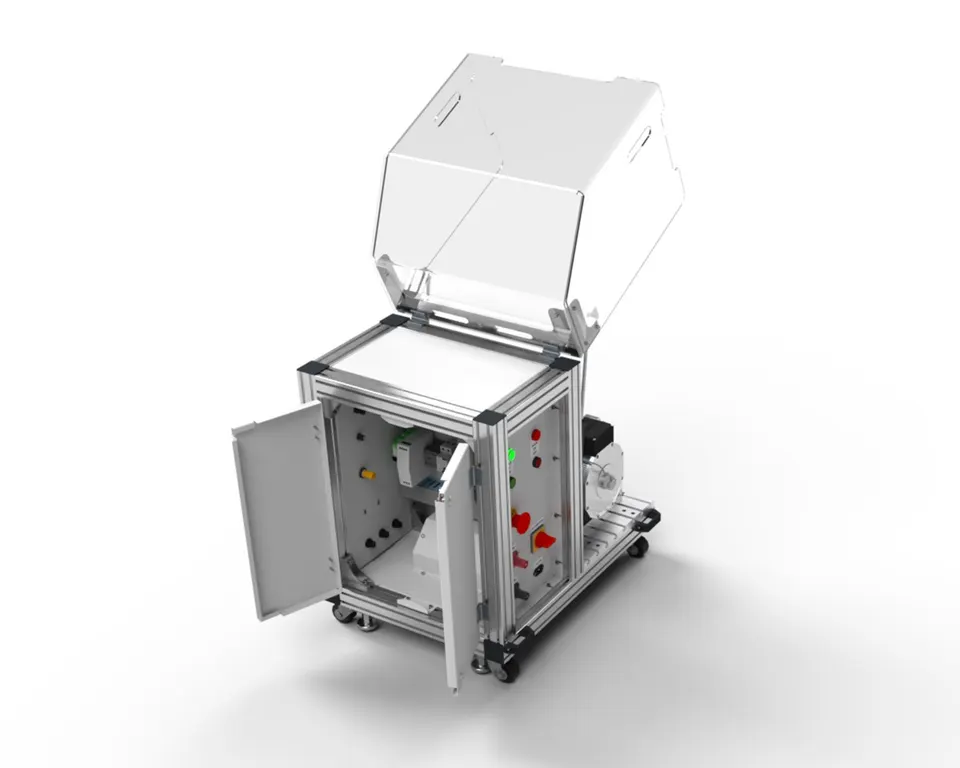

Portable Design
Compact and easy to transport for both lab and field testing.
Compact Design
Versatile Solution
User Friendly
Fast Integration
Made by Experts
Specifications
General & Installation
GENERAL INFORMATION
- Equipment Name
SOLO Motor Test Bench - Part Number
TB01752006900 - Manufacturer
SOLO Motor Controllers S.R.L. - Country of Origin
Italy - Applicable Standards
CE, ROHS - Document Issue Date
15/01/2025 - Applications
EV, Automotive, Industrial, Aerospace, R&D and more - Purpose
Testing a wide range of motors & controllers
INSTALLATION REQUIREMENTS
- Floor Space
3 × 2 m - Cooling
Air ventilation - Foundation
Reinforced desk (80 × 200 mm)
* If you need different specifications, you can request a custom solution
Technical Specifications
ELECTRICAL SPECIFICATIONS
- Power Supply
110/220 VAC, 50/60 Hz - External DC Power Supply
DC Up to 75 kW - Max Power Output
Up to 60 kW - Motor Controller
User-selectable
MECHANICAL SPECIFICATIONS
- Frame Material
Aluminum Alloy Beam + Coated Steel Panels - Working Surface

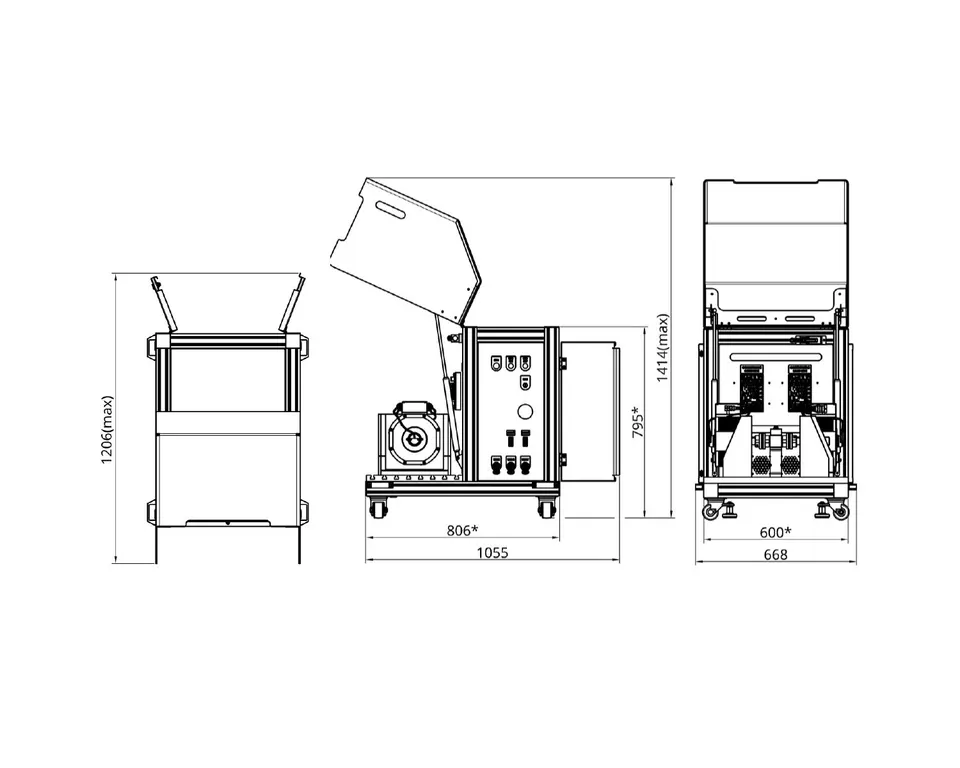

Industrial T-Slot Plate (10mm) - Dimensions (DxWxH)
806 × 668 × 795 mm - Weight
80 kg
PERFORMANCE PARAMETERS
- Test Accuracy
±0.1 % - Response Time
1 ms - Operating RPM Range
0 to 100,000 RPM - Operating Temperature
-20 to +70 °C - Humidity Range
20 to 99 % (non-condensing)
* If you need different specifications, you can request a custom solution
Interfaces & Features
USER INTERFACE & SOFTWARE
- Power Control Panel
AC Inlet, Switches, Emergency STOP, LEDs, … - Data Control Panel
STO, Cooling FAN, USB, CAN, … - Communication Protocols
CANopen, EtherCAT, USB - Data Logging
Real-time + Export (CSV/Excel) - Control Software
SOLO Motion Terminal, Torque Sensor Software
SENSORS INCLUDED
- Torque Sensor
-100 Nm to +100 Nm (customizable) - Speed Sensor
User-selectable (Incremental, Absolute, …) - Temperature Sensor
PT1000 (customizable)
SAFETY FEATURES
- Emergency Stop Button
Yes (on each control panel) - Safe Torque Off (STO)

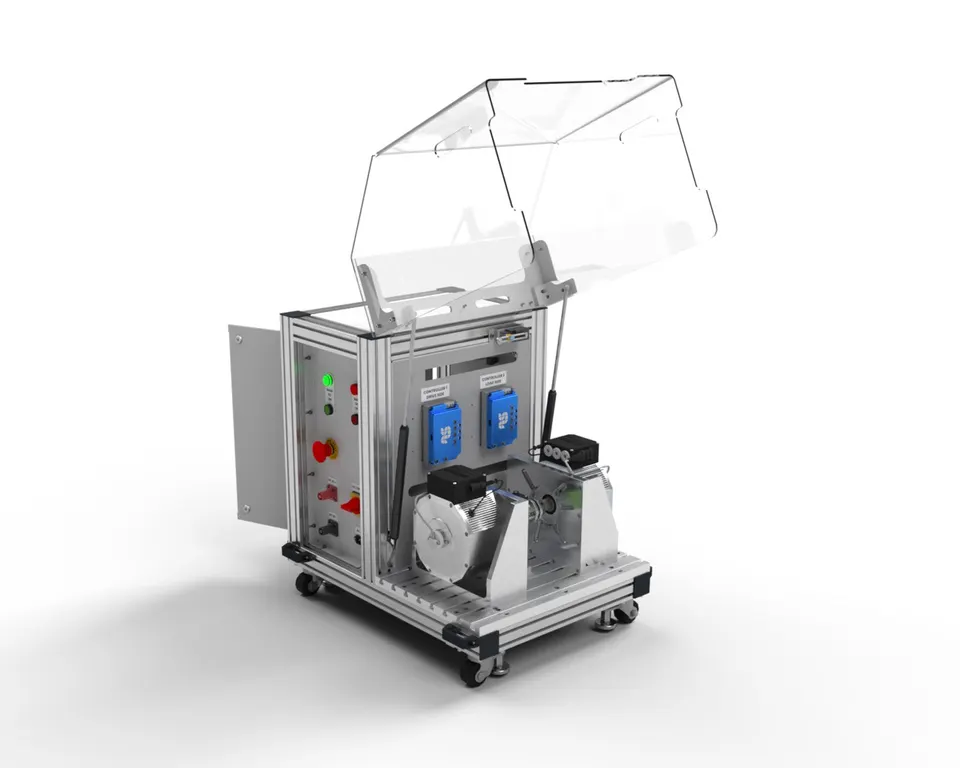

Yes - Protective Enclosure
Transparent Safety Shield with limit switch - Alarms and Warnings
Visual LEDs
* If you need different specifications, you can request a custom solution
Packaging & Delivery
PACKAGING AND DELIVERY
- Packing Dimensions (DxWxH)
930 × 730 × 915 mm - Weight (Packaged)
100 kg
* If you need different specifications, you can request a custom solution
Custom Designs & Services
At SOLO, we deliver tailored motion control solutions, from fully integrated systems designed for unique application requirements, to custom features and hardware adaptations. Whether you’re in R&D or production, our team will help bring your idea to life.
